| SkullandBonesSkateboards.com Forum Index » SCREEN PRINTING » screening t-shirts |
|
Page 1 of 2 Goto page 1, 2 Next |
|
| Author |
Message |
| boss |
 Posted: Sat Dec 08, 2007 9:59 pm |
 |
|
|
Joined: 19 Nov 2007
Posts: 227
|
ok, I've been screening veneer in the flat before pressing the decks; using nazdar 59000. I pretty much taught myself and have it down pretty good now.
Now I want to try t-shirts, I have some questions;
!. What series of nazdar ink?
2. Do you need a barrier material inside the shirt to prevent bleed thru onto the backside?
3. How much "gap" between the screen and shirt?
4. How to prevent the shirt from sticking to the screen? Is there a hold down method?
Any info will help. Thanks.....3.2.1. |
|
|
| Back to top |

|
|
|
| ivescreenedforless |
| Posted: Mon Dec 10, 2007 11:58 am |
|
|
Joined: 30 Sep 2007
Posts: 150
|
This is a basic example of what is used for printing shirts.
I dont use nazdar for shirts but you can search by substrate or application on their website www.sourceoneonline.com . Other companies such as Union Ink or International Coatings are pretty popular in the textiles world.
the platen which you slide the shirt onto is your "barrier" and the shirt is held down with spray adheasive.
an 1/8 of an inch is pretty standard for off contact, more off contact leads to more ink being laid down but it can get messy if you go too far.
Something like the picture above can be pretty simple to build with just some "JIFFY Hinges" and something to form a platen.
good luck |
|
|
| Back to top |
|
| boss |
| Posted: Mon Dec 10, 2007 6:16 pm |
|
|
|
Joined: 19 Nov 2007
Posts: 227
|
| thanks alot!! that's alot better than what I had! Thanks again. |
|
|
| Back to top |
|
|
|
| boss |
| Posted: Wed Jan 09, 2008 8:42 pm |
|
|
|
Joined: 19 Nov 2007
Posts: 227
|

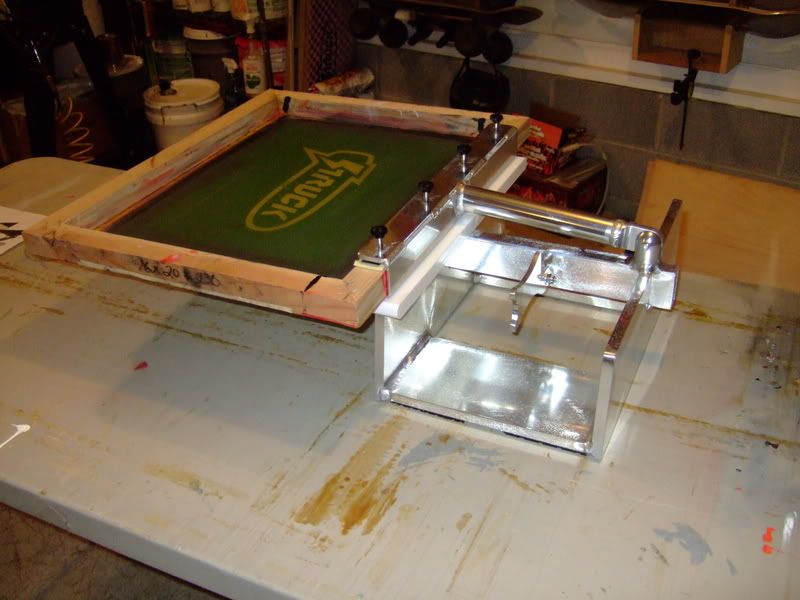

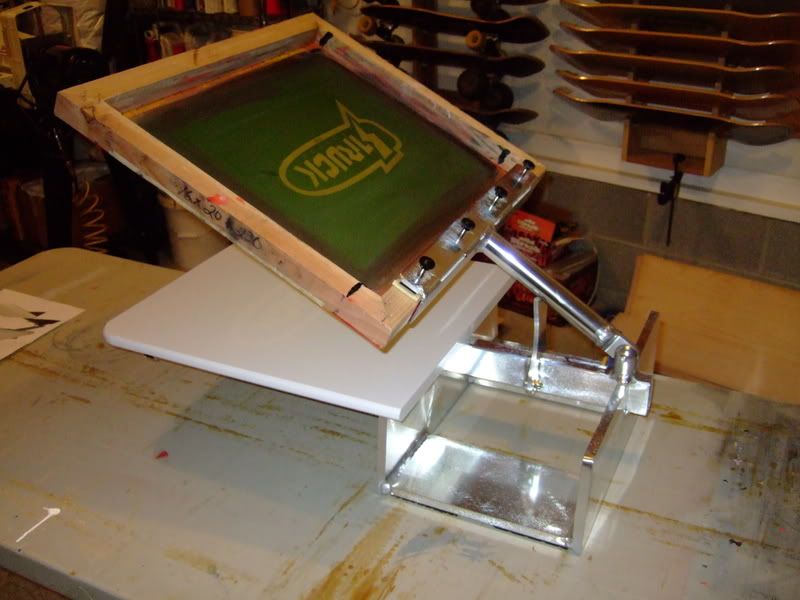

Thanks for the info ivescreenedforless! This is what I built.
 |
|
|
| Back to top |
|
| ivescreenedforless |
| Posted: Thu Jan 10, 2008 4:38 pm |
|
|
|
Joined: 30 Sep 2007
Posts: 150
|
| nice work! hows it workin for you? |
|
|
| Back to top |
|
| jerboy |
| Posted: Thu Jan 10, 2008 5:50 pm |
|
|
Joined: 02 Jun 2006
Posts: 334
Location: the piedmont
|
damn, thats a nice little press.
wanna build another? |
|
|
| Back to top |
|
|
|
| boss |
| Posted: Thu Jan 10, 2008 5:52 pm |
|
|
|
Joined: 19 Nov 2007
Posts: 227
|
I'll try it out this weekend.
and yes I can build more. |
|
|
| Back to top |
|
| masonmayhem |
| Posted: Fri Jan 11, 2008 5:39 pm |
|
|
|
Joined: 28 Oct 2004
Posts: 1376
Location: Redneck Riviera, AB
|
just a suggestion...
if you add some tarp straps
 to the back of your press you wouldn't have to worry about having that little arm there to hold up your screen when you aren't screening.
springs (about the size of the ones on a trampoline) work well too. |
_________________
...if it ain't insane then you can't get rad... |
|
| Back to top |
|
| boss |
| Posted: Fri Jan 11, 2008 5:47 pm |
|
|
|
Joined: 19 Nov 2007
Posts: 227
|
| yea, I had the spring idea but didn't have any. btw, how much do the shirt presses normally cost? thanks |
|
|
| Back to top |
|
|
|
| boss |
| Posted: Fri Apr 17, 2009 8:37 am |
|
|
|
Joined: 19 Nov 2007
Posts: 227
|

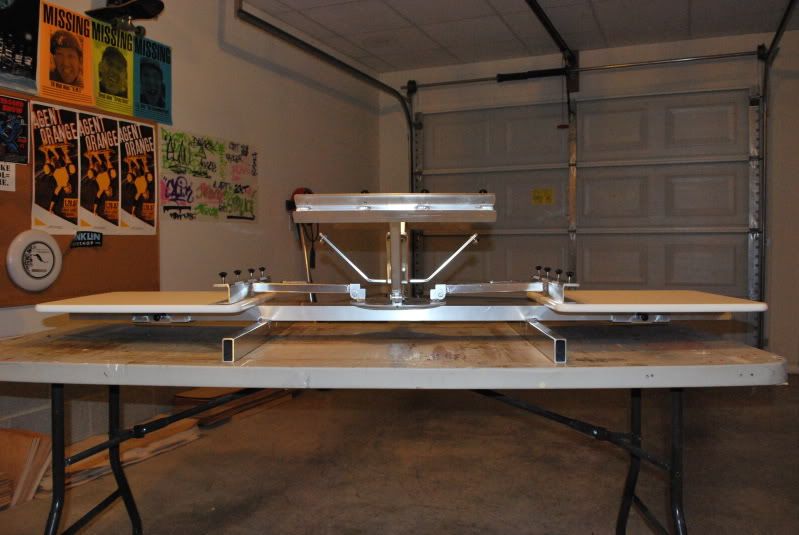

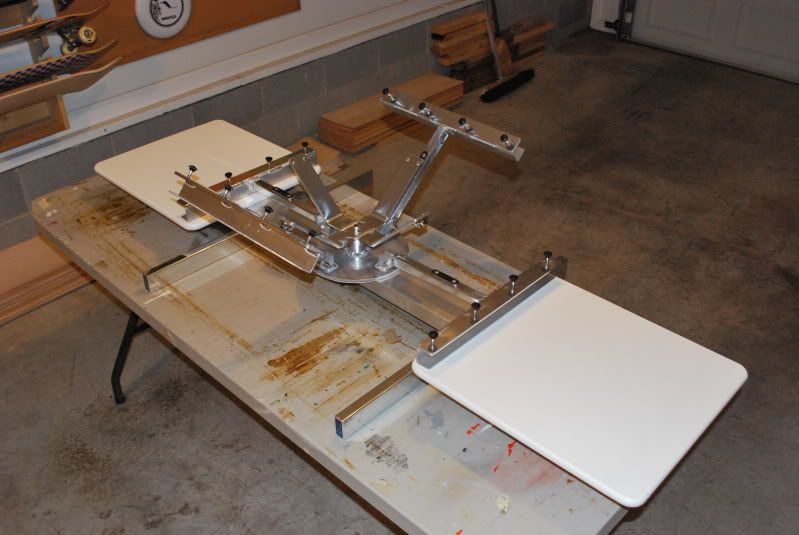

well I built another one...I love this shit!
The arms are help in the up position by strong magnets.
The pallets will slide in and out and lock into position.
 |
|
|
| Back to top |
|
|
